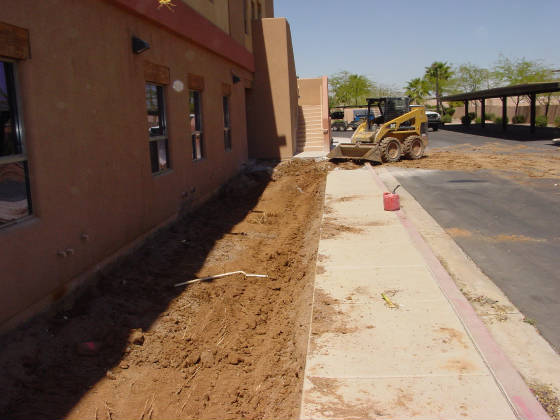

| 3' OF SOIL IS EXCAVTED TO ALLOW FOR 3' OF ABC |
|
|

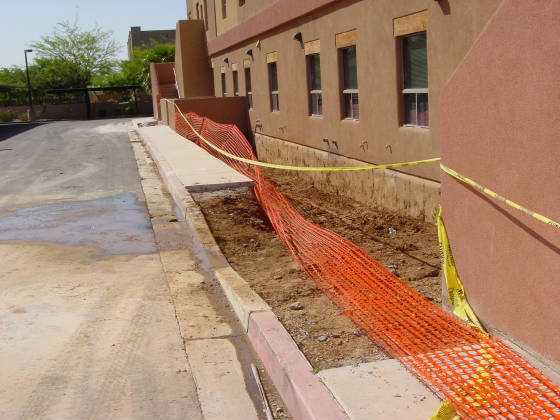

| 3 ' OF ABC WILL BE INSTALLED & COMPACTED PRIOR TO POURING CONCRETE |

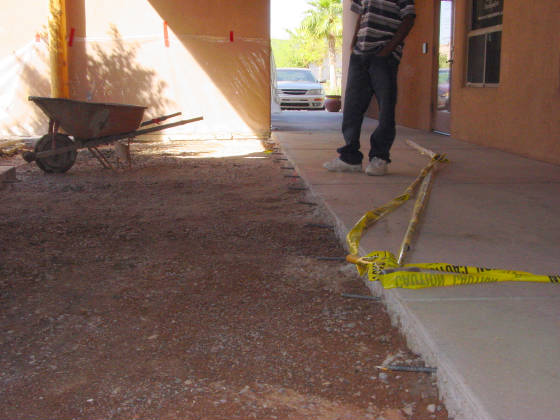

| REBAR INSTALLED IN EXISTING CONCRETE |
|
|
| REBAR "PINS" ARE USED TO KEEP THE NEW CONCRETE FROM MOVING OR SEPARATING FROM THE OLD |

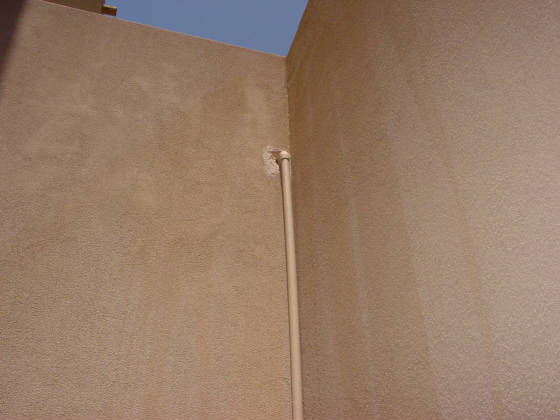

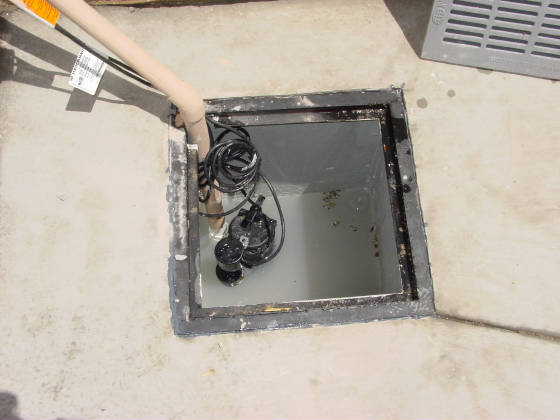

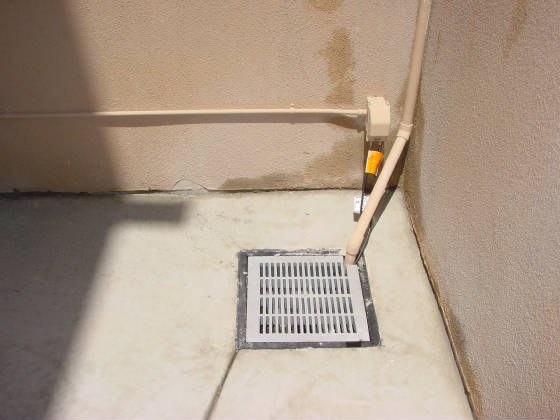

| THE SUMP PUMP IS PIPED UP THRU THE WALL |
|
|
| THIS PUMP CAN PUMP 2,000 GAL PER HOUR 15' STRAIGHT UP |

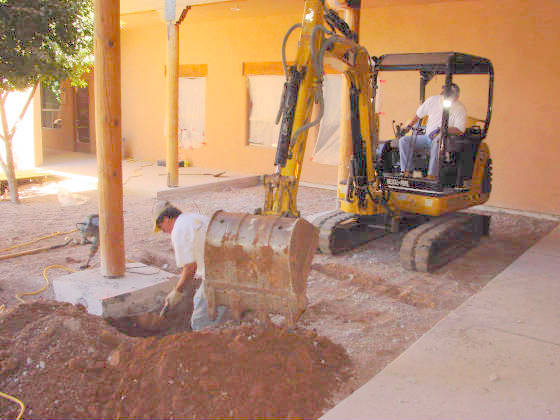

| EXCAVATING UNDER A SAGGING SUPPORT PILLAR |
|
|
| HELLICAL PIER INSTALLED |
|
|

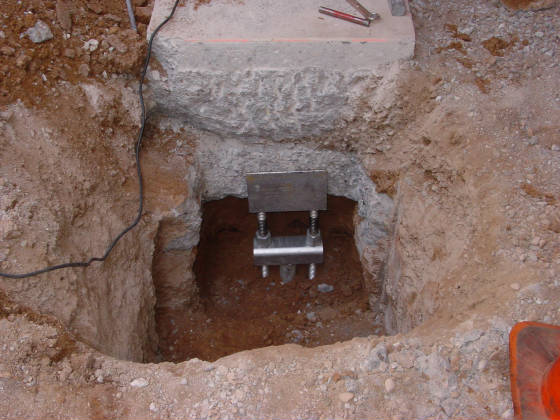

| THE PIER WILL IS JACKED UP TO SUPPORT THE PILLAR |
| SIDE VIEW OF AFTER REPIPE |
|
|
| THE STORMWATER WILL DRAIN INTO A PERFORATED PIPE |
|
|
| THE PIPE IS THEN DRAINED OUT BY GRAVITY TO DAYLIGHT |

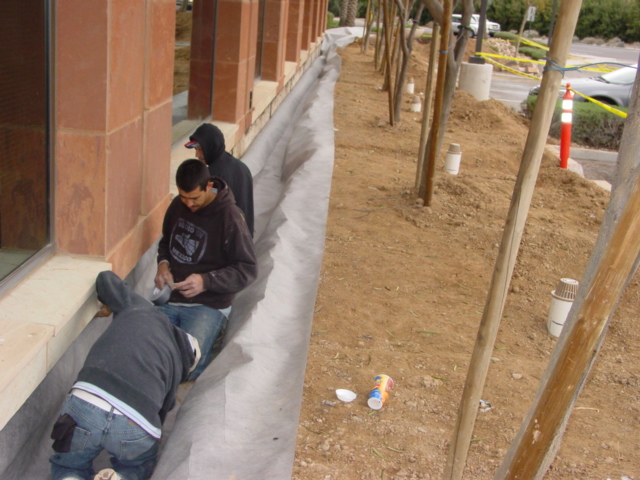

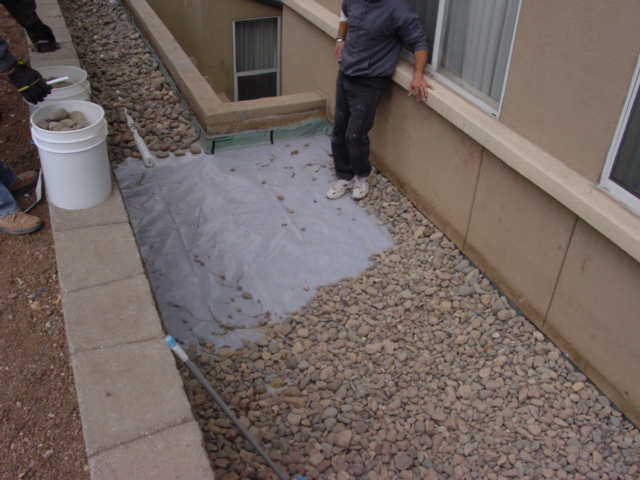

| GEOTECH FABRIC INSTALLED FOR FOUNDATION DRAIN |
|
|
| THE FABRIC WILL SEPERATE THE SOIL FROM THE PERFORATED DRAIN PIPE |

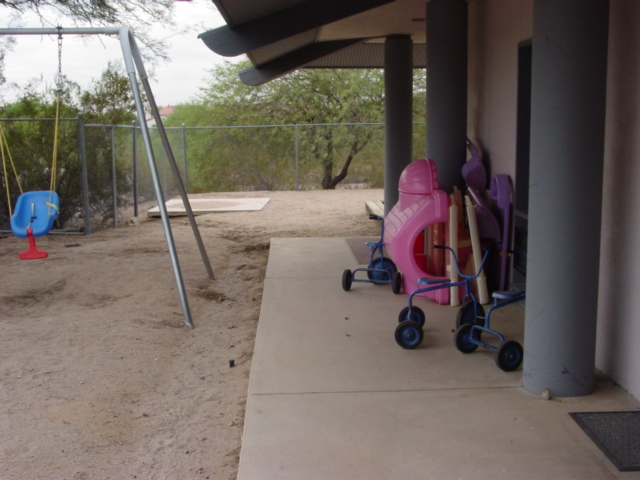

| Church playground before |
|
|
| Storm runoff grom the roof causing erosion in the playground |
 |
|

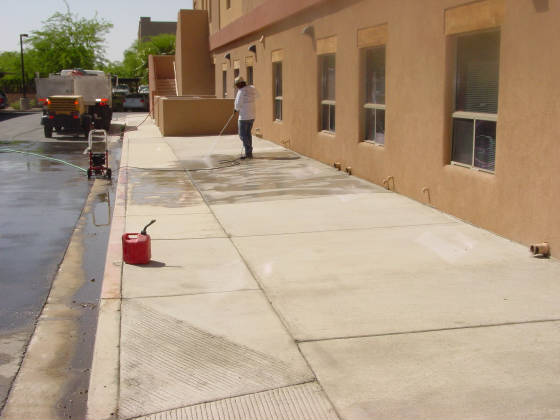

| CONCRETE INSTALLED IN PLANTER |
|
|
| THE CONCRETE HAS A 4' DROP FROM THE BUILDING TO THE SIDEWALK |
| A SUMP BASIN INSTALLED IN THE BASEMENT STAIRWELL |
|
|
| WATER WAS PONDING IN THE STAIRWELL & ENTERING THE BASEMENT |
| EXCAVATION UNDER THE FOOTER OF THE PILLAR |
|
|

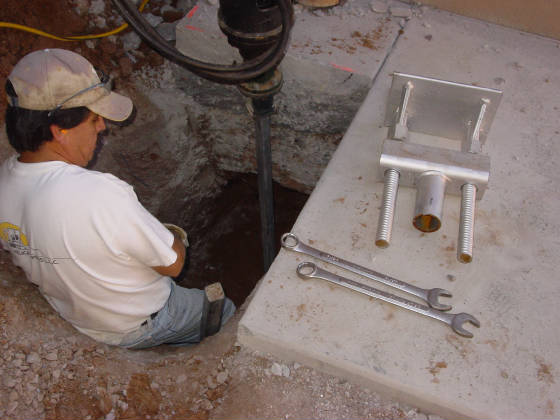

| "INSTALLING THE "HELLICAL PIER" |

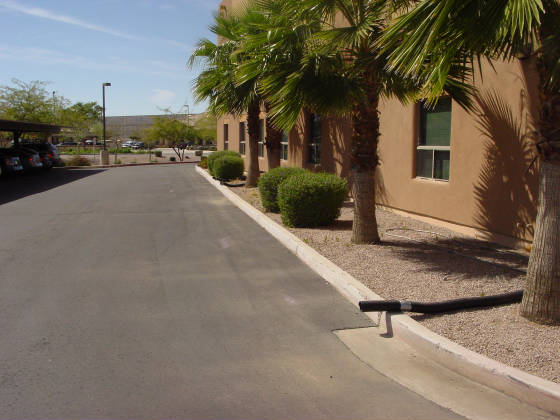

| TEMPORARY DRAIN PIPE INSTALLED ARE NOT ATTRACTIVE |
|
|

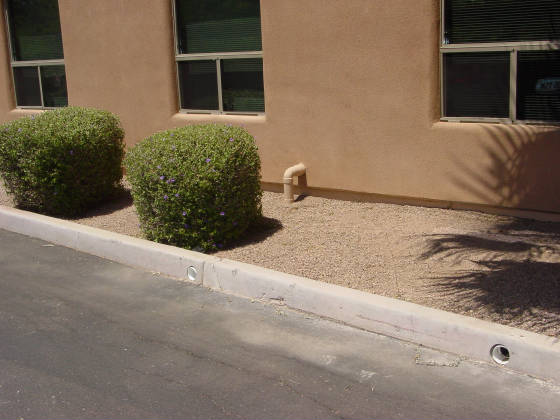

| BELOW AFTER WE INSTALLED PIPE UNDERGROUND & DRILLED THRU THE CURB FOR THE PIPE OUTLET |

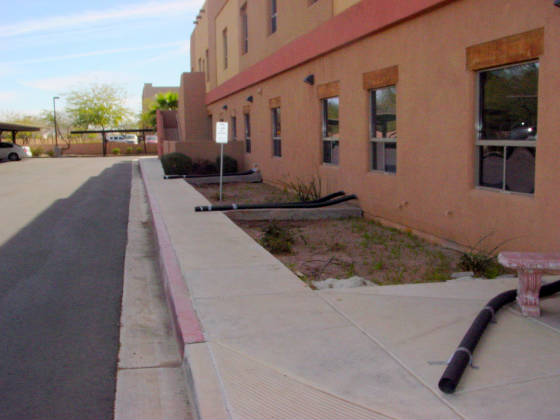

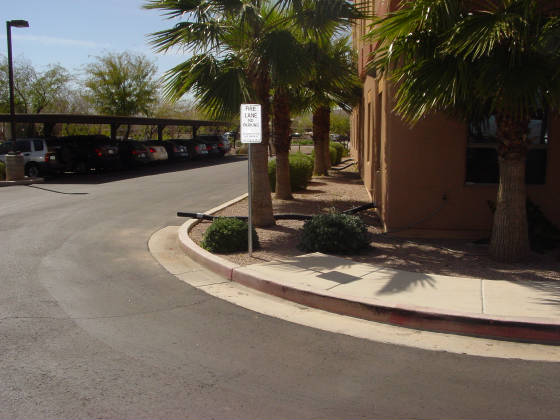

| SIDE VIEW OF TEM,PORARY DRAIN PIPE BEFORE |
|
|
| THIS HOTEL HAS LOWER ROOMS WITH WATER INTRUSION |
|
|

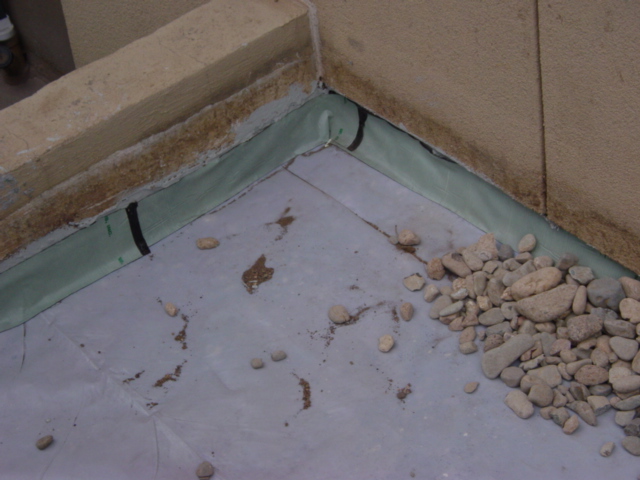

| A TEMPORAY SOLUTION IS TO ATTACH 10 MIL POLY TO THE STEM WALL |

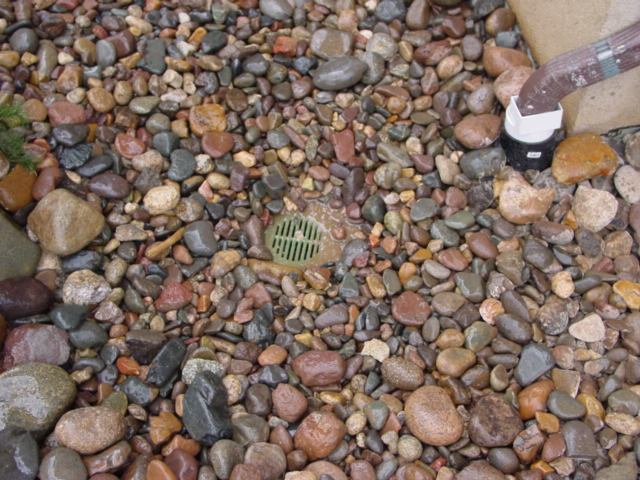

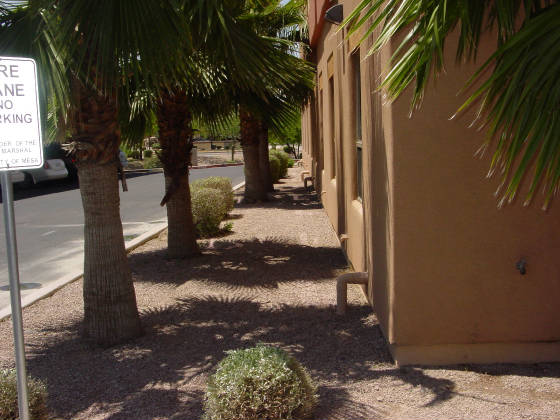

| A NEW DRAIN & ROOF DOWNSPOUT TIED INTO DRAIN PIPE |
|
|

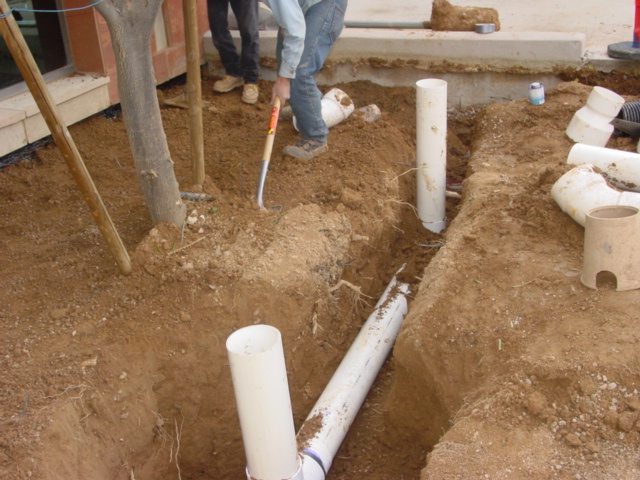

| 6" DRAIN PIPE BEING INSTALLED |
|
|
| THE VERTICAL PIPES WILL BE CUT & ATRIUM AREA DRAIN GRATES INSTALLED |
| Church playground after |
|
|

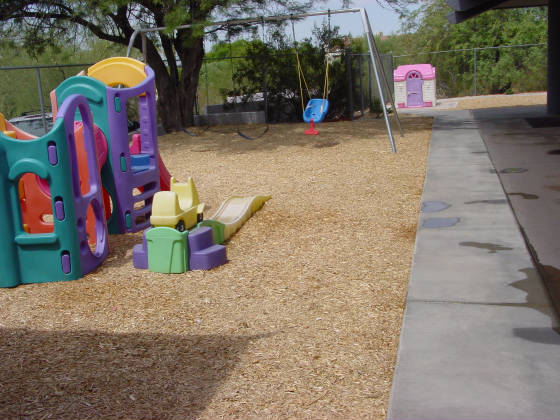

| A new sidewalk stops erosion & creates a track to ride toys on, new mulch replaces sand |
|
